Code: S401M-C32NP
Caltech Technologies stockist of ABB S401M-C32NP, Miniature Circuit Breaker. A complete range of Panel Equipment is available online & in-store.
€52.57 ex VAT
In Stock
QtyAdd to Cart

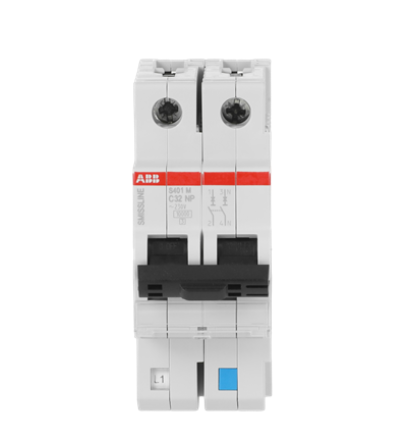

ABB S401M-C32NP | Miniature Circuit Breaker
1 Pole + N MCB | ABB Smissline | Panel Equipment
Specifications:
- Extended Product Type: S401M-C32NP
- Product ID: 2CCS571103R8324
- EAN: 7612270103485
- Catalog Description: Miniature Circuit Breaker - S400NP - 2P - 32 A - C - (230 V) 10 kA
- Long Description: SMISSLINE TP S400M are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 10 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400M are comply with IEC/EN 60898-1 for B,C and D characteristic and IEC/EN 60947-2 for C and K characteristic. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications.
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
