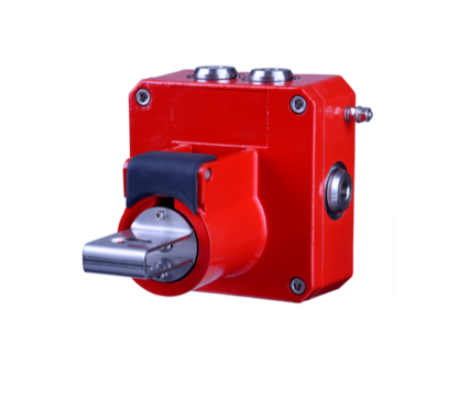

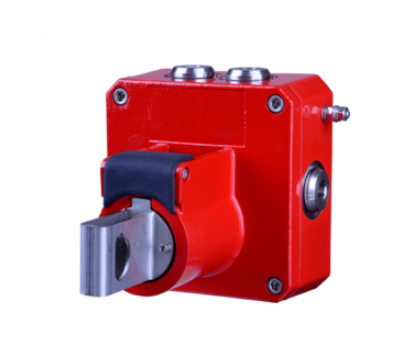

e2s STExCP8-PB Push Button Call Point
e2S EExd Explosion Proof Break Glass Manual Call Point | Ex-Break Glass Manual Call Point
e2s STExCP8-PB Push Button Call Point
The explosion proof STExCP8-PB latching, dual action, twist and push button manual call point, featuring a 316L stainless steel enclosure, is designed for the harshest of Zone 1, 2 & Class I Div 2 environments.
Approved for Zone 1 and 2 hazardous areas for fire and gas alarm systems plus emergency shutdown and process control applications. Available with standard DIN rail terminals or the innovative E2S termination board providing dedicated connections for field installed EOL and/or series devices. SIL 2 compliant to IEC 61508 (2010). DNV type approved for exposed locations.
Features:
Features:
- Robust corrosion proof 316L stainless steel enclosure
- Epoxy powder coat paint finish
- Alternative housing colours are available to meet specific requirements
- Ingress protection IP66/67
- Single or double switch
- Optional equipment tags and duty labels
- 2 × 316 Stainless steel stopping plugs included
- 3 x M20 cable entries
- Stainless steel fasteners
- DNV type approved IEC 60945 & DNVGL-CG-0339
- Available with addressable modules
- Optional LED indicator
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
