Code: STExCP8-BG
Caltech Technologies stock list of e2s STExCP8-BG Break Glass Call Point. A complete range of Hazardous Area Products is available online & in-store.

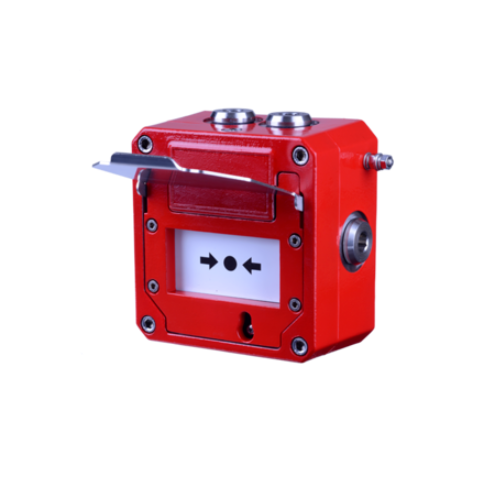

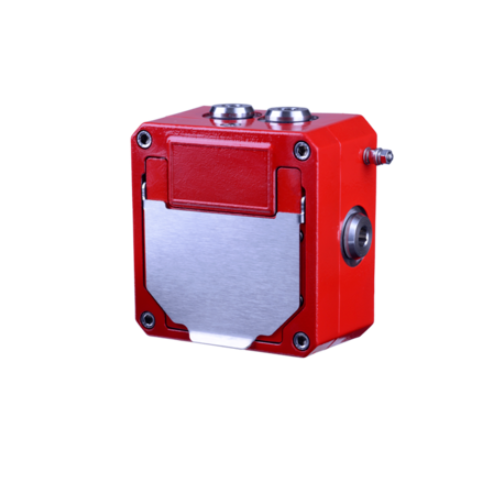

e2s STExCP8-BG Break Glass Call Point
e2S EExd Explosion Proof Break Glass Manual Call Point | Ex-Break Glass Manual Call Point
e2s STExCP8-BG Break Glass Call Point
The explosion proof STExCP8-BG break glass manual call point, with a 316L stainless steel enclosure, is designed for the harshest of environments. Approved for Zone 1, 2 & Class I Div 2 hazardous areas for fire and gas alarm systems, ESD and process control.
Available with standard DIN rail terminals or the innovative E2S termination board providing dedicated connections for field installed EOL and/or series devices. The break glass element features a safety membrane and is designed to snap ensuring the no glass fragments are released during activation. A hammer is available as an accessory if required by local code. SIL 2 compliant to IEC 61508 (2010). DNV type approved for exposed locations.
Features:
- Robust corrosion proof 316L stainless steel enclosure
- Epoxy powder coat paint finish
- Alternative housing colours available
- Ingress protection IP66/67
- Single or double switch
- Optional equipment tags and duty labels
- Optional stainless steel lift flap
- 2 × 316 Stainless steel stopping plugs included
- 3 x M20 cable entries
- Test key facility
- Break glass hammer accessory available
- DNV type approved IEC 60945 & DNVGL-CG-0339
- Available with addressable modules
- Optional LED indicator
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
e2s STExCP8-BG Break Glass Call Point
e2S EExd Explosion Proof Break Glass Manual Call Point | Ex-Break Glass Manual Call Point
e2s STExCP8-BG Break Glass Call Point
The explosion proof STExCP8-BG break glass manual call point, with a 316L stainless steel enclosure, is designed for the harshest of environments. Approved for Zone 1, 2 & Class I Div 2 hazardous areas for fire and gas alarm systems, ESD and process control.
Available with standard DIN rail terminals or the innovative E2S termination board providing dedicated connections for field installed EOL and/or series devices. The break glass element features a safety membrane and is designed to snap ensuring the no glass fragments are released during activation. A hammer is available as an accessory if required by local code. SIL 2 compliant to IEC 61508 (2010). DNV type approved for exposed locations.
Features:
- Robust corrosion proof 316L stainless steel enclosure
- Epoxy powder coat paint finish
- Alternative housing colours available
- Ingress protection IP66/67
- Single or double switch
- Optional equipment tags and duty labels
- Optional stainless steel lift flap
- 2 × 316 Stainless steel stopping plugs included
- 3 x M20 cable entries
- Test key facility
- Break glass hammer accessory available
- DNV type approved IEC 60945 & DNVGL-CG-0339
- Available with addressable modules
- Optional LED indicator
