Code: GNExJ2 Junction Box
Caltech Technologies stock list of e2s GNExJ2 Junction Box. A complete range of Hazardous Area Products is available online & in-store.
e2s GNExJ2 Junction Box
e2S EExd Explosion Junction Box | Ex-Junction Box
e2s GNExJ2 Junction Box

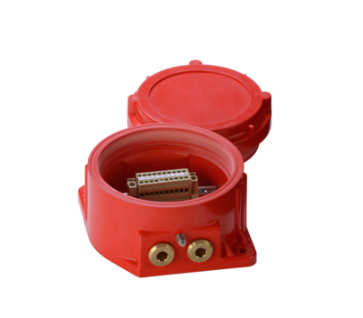

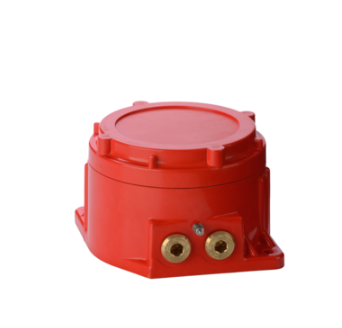

The GNExJ2 is a versatile globally certified explosion proof junction box. The robust IP66/67 corrosion proof GRP (glass reinforced polyester) enclosure with extended temperature range ensures the D1xJ2 is suitable for all Zone 1, 2 and Class I Division 2 applications.
The UV stable GRP enclosure features a threaded flame path, triple cable entries and a large termination area – all of which significantly reduce installation time. With a power rating of up to 5W the junction box can be configured with a 12 way standard terminal block, a 12 way DIN rail terminal block.
Features:
- Robust corrosion proof GRP (glass reinforced polyester) enclosure
- Ingress protection IP66/67
- Threaded flame path simplifies installation and inspection
- Triple cable entries
