Code: GNExCP7-PB
Caltech Technologies stock list of e2s GNExCP7-PB Dual Push Button Call Point. A complete range of Hazardous Area Products is available online & in-store.

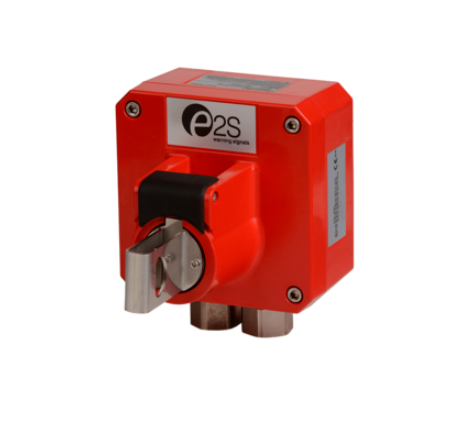

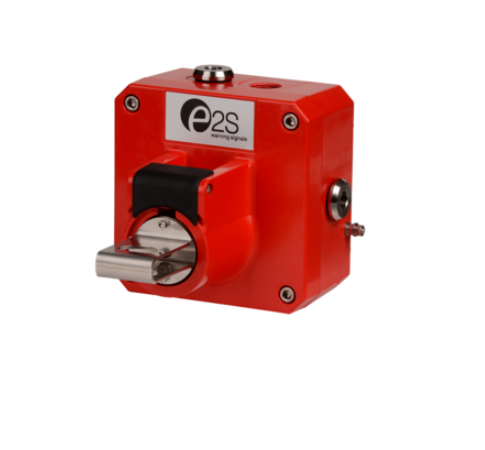

e2s GNExCP7-PB Dual Action Push Button Manual Call Point
e2S EExd Explosion Proof Break Glass Manual Call Point | Ex-Break Glass Manual Call Point
e2s GNExCP7-PB Dual Action Push Button Manual Call Point
The explosion proof GNExCP7-PB dual action, twist and push button Ex d manual call points feature a robust GRP enclosure with a 316 stainless steel mechanism and IP66/67 rating – designed for the harshest hazardous environments.
Requiring a twist and push action to activate the GNExCP7-PB features a robust stainless steel button. Globally approved to IECEx, ATEX, UL and cUL standard for all Zone 1, 2, 21 & 22 and Class I/II Div 2 installations. Available with standard DIN rail terminals or the innovative E2S termination board providing dedicated connections for field installed EOL and/or series devices. SIL 2 compliant to IEC 61508 (2010).
Features:
- Corrosion proof GRP enclosure, anti-static & UV stable
- Ingress protection IP66/67/68, 4/4X/3R/13
- Single or double switch (SPCO/DPCO)
- 316 (A4) Stainless Steel mechanism
- 3 x M20 cable entries, 2 x Stopping plugs included
- Captive stainless steel fasteners
- Available with addressable modules
- Optional LED indicator
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
