Code: GNExCP6-PT
Caltech Technologies stock list of e2s GNExCP6-PT Push Button Tool Call Point. A complete range of Hazardous Area Products is available online & in-store.

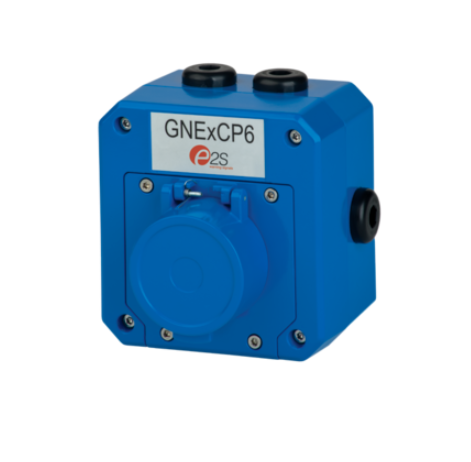

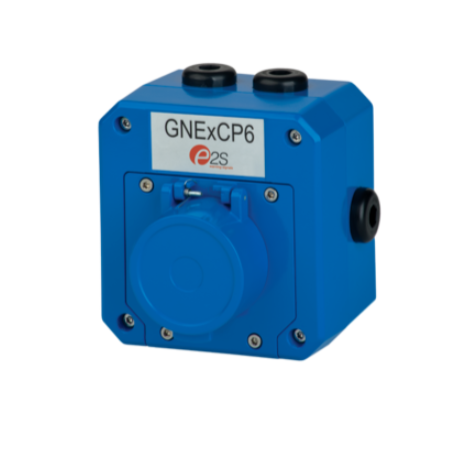

e2s GNExCP6-PT Push Button Tool Reset Call Point
e2S EExd Explosion Proof Break Glass Manual Call Point | Ex-Break Glass Manual Call Point
e2s GNExCP6-PT Push Button Tool Reset Call Point
The flameproof GNExCP6-PB tool reset push button manual call points are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. The robust, lightweight GRP enclosure is UV stable and provides a corrosion free solution for initiation in harsh and hazardous applications on and offshore.
Available with optional EOL or series resistors, diode or Zener diodes and an LED indicator. Also available with either single or double pole change over switches. Certified to IECEx and ATEX standards with additional PESO, INMETRO and Ex EAC approvals. The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The GNExCP6-PT is user re-settable via the use of the special key supplied with the unit.
Features:
Features:

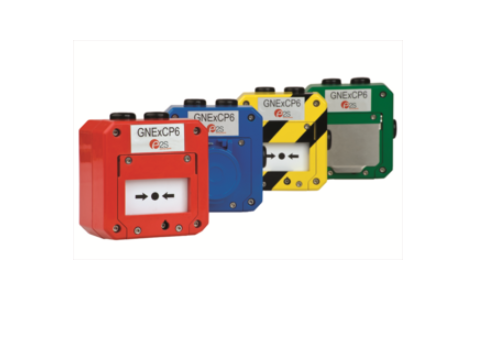

- Alternative housing colours are available to meet specific requirements
- Single or double pole c/o switch
- DIN rail mounted terminal blocks: 8 × 2.5mm²
- Metalised polyester or stainless steel “Duty” label
- Series and/or End of Line resistors, diodes & Zener diodes
- Optional Indicator LED
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
