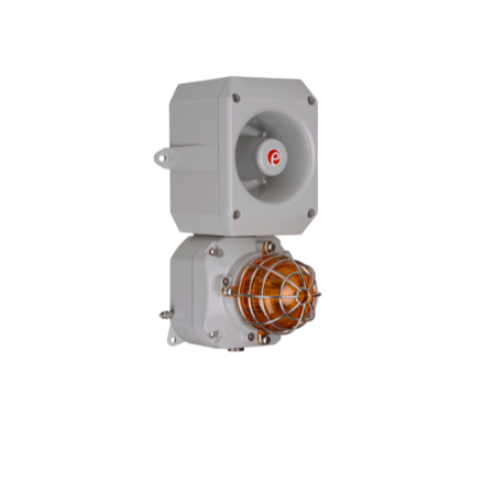

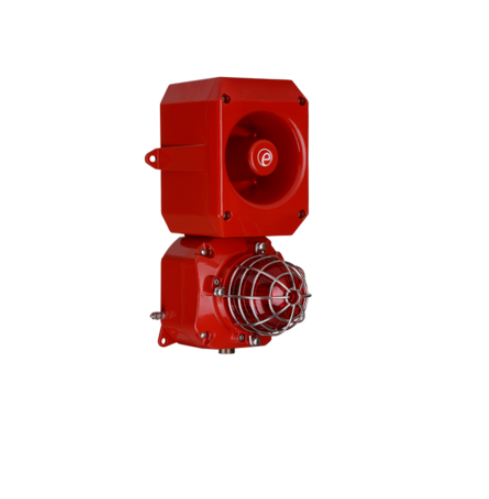

D2xC2X05 Haz Loc Alarm Horn & 5 Joule Xenon Strobe
e2S EExd Beacon Sounders | Ex-Sounder Beacon
The hazardous location combination D2xC2X05 alarm horn sounder & 5J Xenon Strobe beacon/status warning light is UL/cULs/ULC approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
The D2xC2X05 features a 5 Joule, 94.78cd Xenon strobe beacon with max. 116dB(A) alarm horn sounder. The high output alarm horn features 64 tones with remotely selectable stages enabling multiple warnings to be signalled from one device.
The 24Vdc version is UL approved to UL464 & UL1638 and ULC to CAN/ULC-S525 for private mode fire alarm use.
The 24Vdc version is UL approved to UL464 & UL1638 and ULC to CAN/ULC-S525 for private mode fire alarm use.
Features:
- UL464/UL1638 Private mode fire use
- CAN/ULC-S525 Fire Alarm
- UL464/UL1638 General signaling
- Auto-synchronised – audible and visual
- 94.78 effective candela
- 107dB(A) @ 10ft/3m max. sound output – UL464
- 64 alarm tones, 4 remotely selectable alarm stages/channels
- Marine grade aluminium enclosure
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant Borosilicate glass lens
- Stainless steel lens guard as standard
- Field changeable lens colour filter
- Duplicate, pluggable cable terminations for 4 wires
- Supervisory diode
- Dual cable entries
- Supplied with haz loc rated stopping plugs/adaptors
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
