Code: D2xB1XH1
Caltech Technologies stock list of e2s D2xB1XH1 Haz Loc UL1971 Xenon Strobe. A complete range of Hazardous Area Products is available online & in-store.

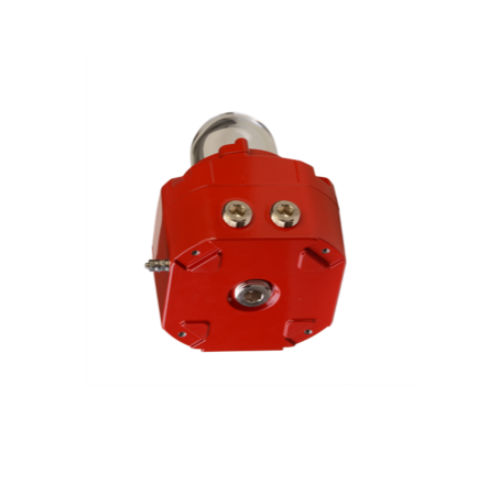

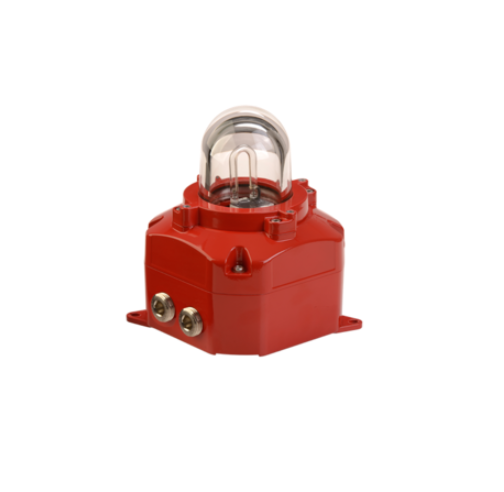

e2s D2xB1XH1 Haz Loc UL1971 Xenon Strobe
e2S EExd Explosion Proof LED Multi-function Beacon | Ex-Visual
e2s D2xB1XH1 Haz Loc UL1971 Xenon Strobe
The D2xB1XH1 features a high output UL1971 rated 18.18cd, 5 Joule Xenon strobe warning light / beacon. Globally approved, the robust Type 4/4X, IP66 enclosure ensures suitability for all haz loc fire alarm and general signalling applications.
Multiple D2xB1XH1 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules in the circuit. One device, worldwide certification: NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2; ATEX, IECEx Zone 2 & 22. UL1638/UL1971 & CAN-ULC-S526 tested – suitable for public mode fire alarm, ADA compliant, hearing impaired applications.
Features:
- UL1971/UL1638 Public mode fire
- CAN/ULC-S526 Fire approved
- 18.18 eff. candela
- Synchronised for over 2 hours per UL1971
- Xenon tube mechanically secured against vibration & shock
- Marine grade aluminum enclosure
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant Borosilicate glass lens
- Stainless steel external and internal fixings
- Duplicate, pluggable cable terminations, supervisory diode
- Conduit mounting via integral 3/4" NPT entry
- Surface mounting via user installed lugs
- Pendant mounting via 3/4"NPT conduit entry
- Dual 1/2"NPT and M20 cable entries
- Supplied with haz loc rated stopping plugs/adaptors
- UL Marine approved
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
