Code: D2xB1X05
Caltech Technologies stock list of D2xB1X05 Haz Loc Xenon Strobe 5J. A complete range of Hazardous Area Products is available online & in-store.

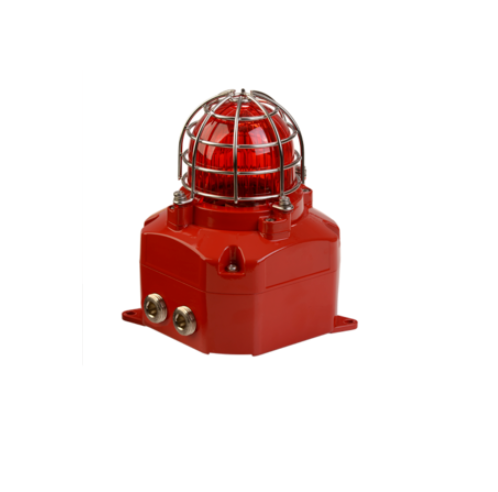

e2s D2xB1X05 Haz Loc Xenon Strobe 5J Warning Light
e2S EExd Explosion Proof LED Multi-function Beacon | Ex-Visual
e2s D2xB1X05 Haz Loc Xenon Strobe 5J Warning Light
The D2xB1X05 features a high output 94.78cd, 5 Joule Xenon strobe warning light beacon. Globally approved, the robust Type 4/4X, IP66 enclosure ensures suitability for all haz loc fire alarm and general signalling applications.
The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilience in the harshest of hazardous location environments. One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2. UL, cUL & ULC approved 24Vdc version is UL1638, CAN/ULC-S526 compliant for private mode fire alarm use.
Features:
- UL1638 & CAN-ULC-S526 Private mode fire
- UL1638 General signaling
- Synchronised 1Hz flash rate
- Xenon tube mechanically secured against vibration & shock
- Duplicate, pluggable cable terminations, supervisory diode
- Marine grade aluminium enclosure
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant Borosilicate glass lens
- Stainless steel lens guard as standard
- Field replaceable lens colour filter
- Surface mounting via user installed lugs
- Pendant mounting via 3/4"NPT conduit entry
- Dual 1/2"NPT and M20 cable entries
- Supplied with haz loc rated stopping plugs/adaptors
- UL Marine approved
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
