Code: D1xL1F Explosion Proof Speaker
Caltech Technologies stock list of e2s D1xL1F Explosion Proof Speaker. A complete range of Hazardous Area Products is available online & in-store.

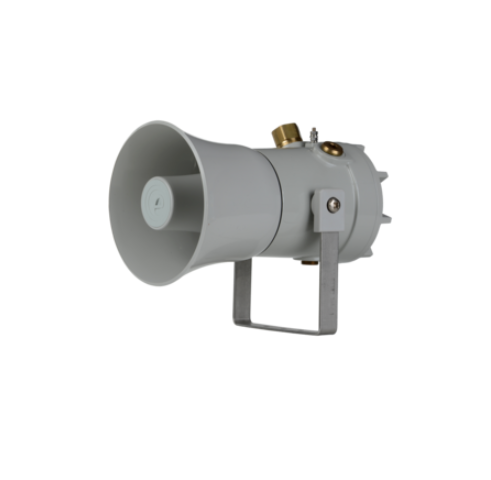

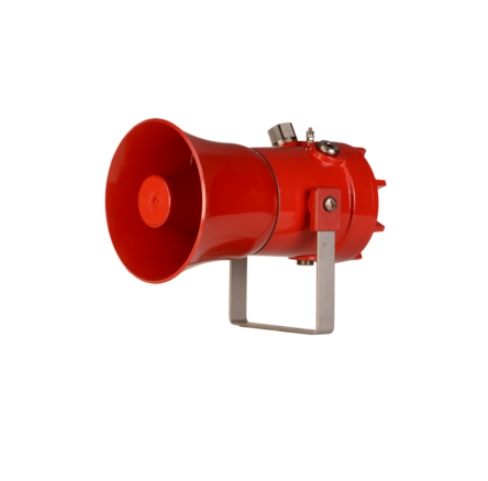

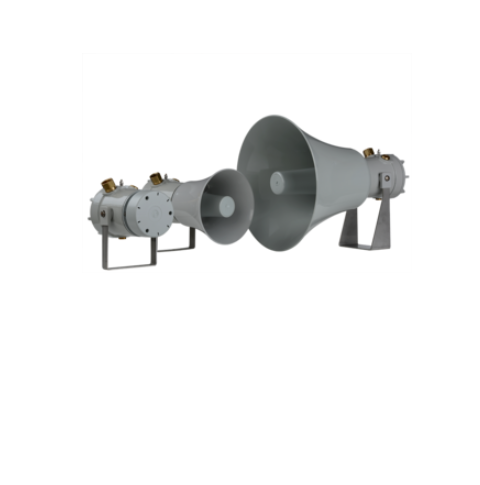

e2s D1xL1F 117dB(A) 15W Explosion Proof Speaker
e2S EExd Explosion Proof Sounder | Ex-Audible
e2s D1xL1F 117dB(A) 15W Explosion Proof Speaker
The D1xL1F is a 15W PA loudspeaker with re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures suitability for all Class I & II Div 1 & Zone 1, 20 and 21 explosion proof applications.
The re-entrant flare horn is high impact, fire retardant thermoplastic and is field replaceable – the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries and duplicated terminals.
The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.
The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.
Features:
- Multiple transformer tappings
- Ratchet adjustable 316 stainless steel bracket
- Triple cable entries, duplicated cable terminations
- Robust marine grade aluminium enclosure
- UL 1480 Speakers for Fire Alarm and Signaling Systems,
- CAN/ULC-S541 Speakers for Fire Alarm and Signaling Systems
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
