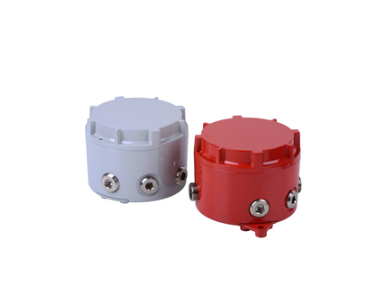

The D1xJ2 is a versatile UL, cUL, IECEx & ATEX approved explosion proof junction box. The robust IP66 corrosion proof aluminium LM6 enclosure and extended temperature range ensures the D1xJ2 is suitable for all Class I/II Division 1/2, Zone 1, 2, 21 & 22 explosion proof applications.

The robust, marine grade, copper free LM6 aluminum enclosure features a threaded flame path and up to seven cable entries. Surface mounted via integrated lugs. With a power rating of up to 10W the junction box can be configured with a 12 way standard terminal block, a 12 way DIN rail terminal block
Robust, marine grade LM6 aluminum alloy enclosure
Chromate & powder coated finish – anti-corrosion
IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/3R/13
Threaded flame path simplifies installation and inspection
Stopping plugs included
6 x side cable entries, 1 x pendant conduit entry

• Robust, marine grade LM6 aluminum alloy enclosure
• Chromate & powder coated finish – anti-corrosion
• IP rating per EN60529:IP66
• Type rating per UL50E/NEMA250:4/4X/3R/13
• Threaded flame path simplifies installation and inspection
• Stopping plugs included
• 6 x side cable entries, 1 x pendant conduit entry

For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
