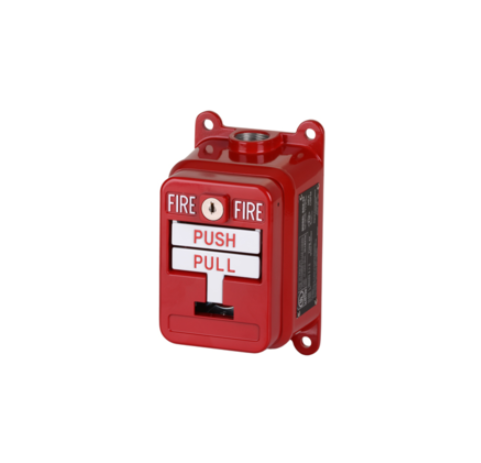

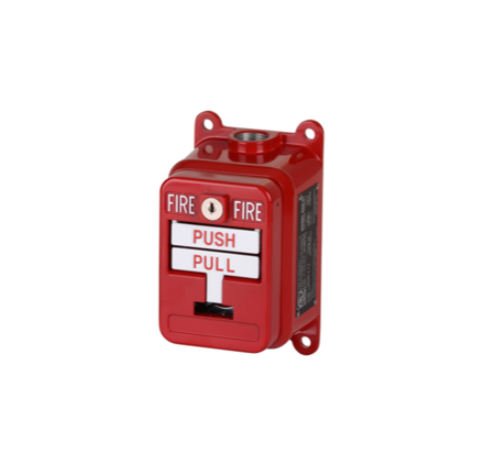

The D1xCP1-PS is a cast aluminium manual alarm pull station available in a dual action configuration. These explosion proof stations have a DPDT switch mounted in heavy duty cast aluminium housings.

The solid design and rugged construction of the D1xCP1-PS station makes it ideal for use in harsh operating environments and hazardous locations. The D1xCP1-PS manual station is UL listed for use in the various classifications of hazardous environments shown in the specification table. The device has a NEMA type 4X rating for operation in extreme weather conditions and plant wash down applications. It is also UL Marine listed for operation in highly corrosive environments.

Features:

The D1xCP1-PS dual action model features a “PUSH” bar
that moves inward, allowing the “PULL” handle to be grasped and operated by a single hand. The activated station is reset by opening the station with a key, placing the handle in the normal upright position, and
re-locking the station.

• Explosion Hazard Classifications

Class I, Div. 1, Group B, C and D
Class II, Div. 1, Group E, F and G
Class III, Div. 1
• UL38 Manual Signaling Boxes for Fire Alarm Systems
• Marine and NEMA type 4X Rated
• DPDT switch with screw terminal connection
• Dual Action
• DC and AC Voltage Contact Ratings
• Key Reset
• SIL2 compliant
