Code: D1xC1X05R
Caltech Technologies stockist of e2s D1xC1X05R Beacon Sounders. A complete range of Hazardous Area Products is available online & in-store.

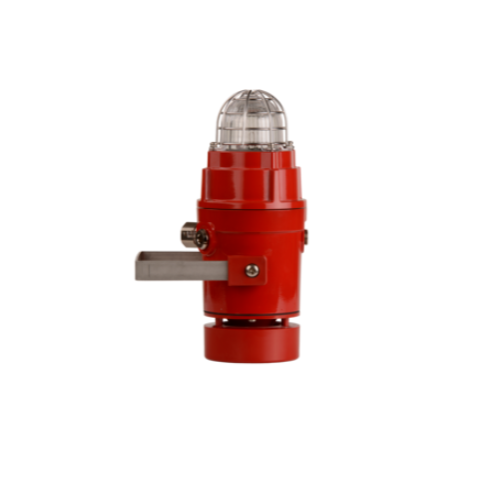

e2s D1xC1X05R 110dB(A) Radial Alarm & 5J Strobe
e2S EExd Beacon Sounders | Ex-Sounder Beacon
e2s D1xC1X05R 110dB(A) Radial Alarm & 5J Strobe

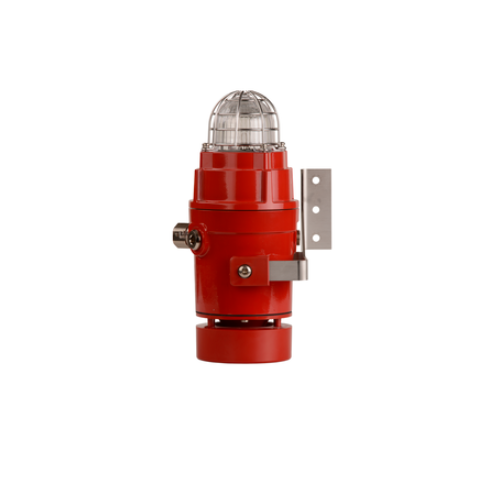

The D1xC1X05R is a globally certified alarm horn sounder with a compact, omni-directional horn and combined with a 5 Joule Xenon strobe beacon. The robust Type 4/4X, IP66/67 marine grade, corrosion proof aluminium enclosure is approved for Class I & II Div 1, Zone 1 & 20, IECEx and ATEX 1, 2, 21 & 22 explosion proof signalling applications.
Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification provides a high sound output at optimum operating current. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc Class I version is approved for public (alarm horn) and private mode fire alarm use (strobe beacon). SIL1 & 2 compliant to IEC61508 (2010).
Alarm Horn Sounder:
- Maximum
output: 110dB(A) @ 1 metre [101dB(A) @ 10ft/3m]
Class II version: 94dB(A) @ 1 metre [85dB(A) @ 10ft/3m] -
Nominal
output:105dB(A) @ 1m +/- 3dB – Tone 4 [96dB(A) @ 10ft/3m]
Class II version: 90dB(A) @ 1 metre [81dB(A) @ 10ft/3m] - No. of tones: 64 (UKOOA / PFEER compliant)
- No. of stages: 4
- Volume control: Full range
- Effective range: 125m/410ft @ 1KHz
- Voltages DC: 24Vdc (20-28Vdc)
- Voltages AC: 110-120Vac, 220-240Vac
-
Stage
switching: DC units: negative or positive
AC units: common supply line
- Energy: 5 Joules (5Ws)
-
Flash
rate: Option 1: 1Hz (60 fpm)
Option 2: 1.5Hz (90 fpm)
Option 3: Double Strike - Peak Candela: 143 cd* – measured ref. to I.E.S.
- Eff. Intensity: 46,976 cd* – measured ref. to I.E.S.
- Peak Candela: 250 cd – calculated from energy (J)
- Eff. Intensity: 500,000 cd – calculated from energy (J)
- Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
- Tube life: Emissions reduced to 70% > 5 million flashes
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
