Code: D1xB2LD2
Caltech Technologies stock list of D1xB2LD2 Explosion Proof LED Beacon. A complete range of Hazardous Area Products is available online & in-store.

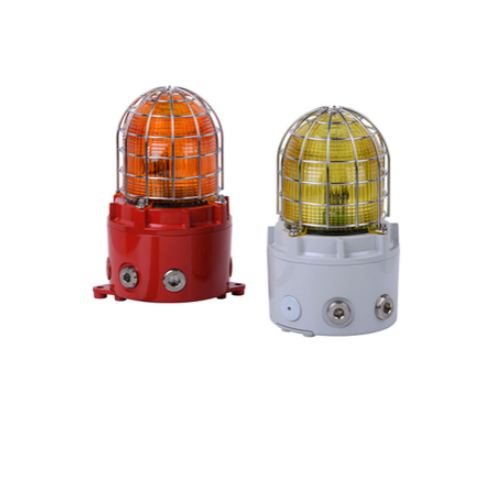

e2s D1xB2LD2 Explosion Proof LED Multi-function Beacon
e2S EExd Explosion Proof LED Multi-function Beacon | Ex-Visual
e2s D1xB2LD2 Explosion Proof LED Multi-function Beacon
The D1xB2LD2 is a globally approved explosion proof multi-function LED beacon. The robust Type 4/4X corrosion proof LM6 marine grade aluminium alloy enclosure ensures suitability for all Class I/II Div 1, Zone 1, 2, 21 & 22 applications.

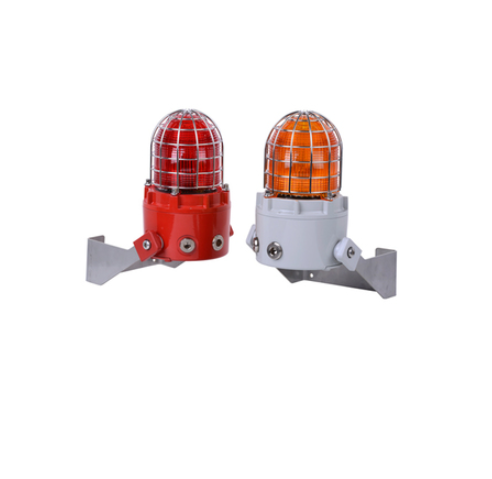

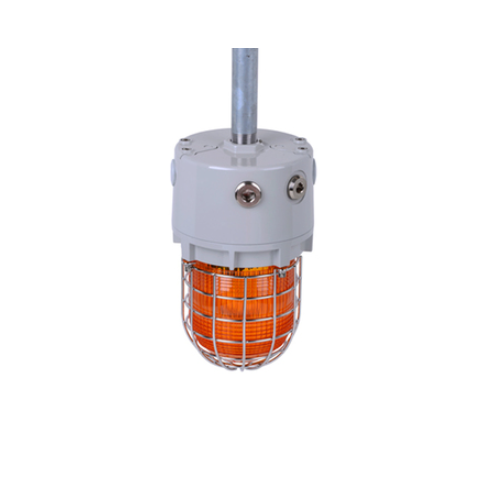

The D1xB2LD2 beacons produce a high output LED flash required for effective signalling in environments with elevated levels of ambient light. The field replaceable colour filter enhances the strobe and is constructed from UV stable PC. The robust enclosure features a threaded flame path, four cable entries. Mounting options include surface via integrated lugs, pendant or by addition of optional multi direction stainless steel bracket. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010) as standard.
Features:
- Five flash rates: 1Hz, 1.33Hz, 2Hz, double and triple flash.
- Automatic synchronisation on multi-beacon systems
- High and low power Steady modes
- Three remotely selectable stages/channels on DC versions.
- A4 316 Stainless Steel guard included as standard
- Field replaceable UV stable lens colour filter
- 4 x side, 1 x pendant entries – stopping plugs included
- Corrosion proof marine grade aluminium enclosure
- UL Marine approved
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
e2s D1xB2LD2 Explosion Proof LED Multi-function Beacon
e2S EExd Explosion Proof LED Multi-function Beacon | Ex-Visual
e2s D1xB2LD2 Explosion Proof LED Multi-function Beacon
The D1xB2LD2 is a globally approved explosion proof multi-function LED beacon. The robust Type 4/4X corrosion proof LM6 marine grade aluminium alloy enclosure ensures suitability for all Class I/II Div 1, Zone 1, 2, 21 & 22 applications.
The D1xB2LD2 beacons produce a high output LED flash required for effective signalling in environments with elevated levels of ambient light. The field replaceable colour filter enhances the strobe and is constructed from UV stable PC. The robust enclosure features a threaded flame path, four cable entries. Mounting options include surface via integrated lugs, pendant or by addition of optional multi direction stainless steel bracket. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010) as standard.
Features:
- Five flash rates: 1Hz, 1.33Hz, 2Hz, double and triple flash.
- Automatic synchronisation on multi-beacon systems
- High and low power Steady modes
- Three remotely selectable stages/channels on DC versions.
- A4 316 Stainless Steel guard included as standard
- Field replaceable UV stable lens colour filter
- 4 x side, 1 x pendant entries – stopping plugs included
- Corrosion proof marine grade aluminium enclosure
- UL Marine approved
