Code: BExCP3-PT
Caltech Technologies stock list of e2s BExCP3-PT Push Button Reset Call Point. A complete range of Hazardous Area Products is available online & in-store.

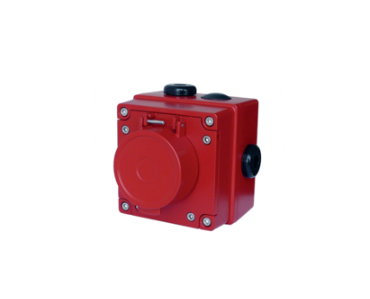

e2s BExCP3-PT Push Button Tool Reset Call Point
e2S EExd Explosion Proof Break Glass Manual Call Point | Ex-Break Glass Manual Call Point
e2s BExCP3-PT Push Button Tool Reset Call Point
The BExCP3-PT push button manual call points are designed for the harshest of environments and approved for Zone 1, 2, 21 and 22 explosion proof hazardous areas for the control of fire and gas alarm systems. SIL2 compliant to IEC61508 (2010).

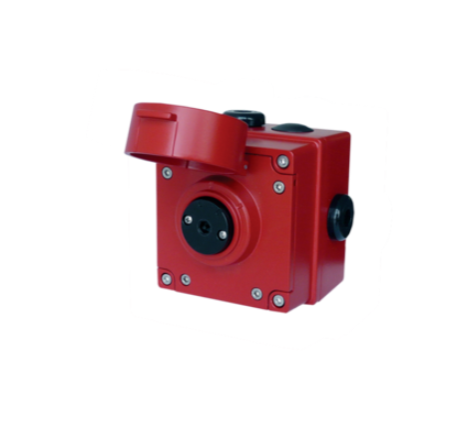

The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium with a chromated and powder coat finish. Available with and without monitoring resistors all versions are certified to IECEx and ATEX standards with additional PESO, INMETRO and Ex EAC approvals. The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The BExCP3-PT is user re-settable via the use of the special key supplied with the unit.
Features:
- Alternative housing colours are available to meet specific requirements.
- DIN rail mounted terminal blocks: 8 × 2.5mm²
- Spring loaded lift flap.
- Metalised Polyester or stainless steel duty label.
- Series and/or End of Line resistors, diodes or Zener diodes.
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
e2s BExCP3-PT Push Button Tool Reset Call Point
e2S EExd Explosion Proof Break Glass Manual Call Point | Ex-Break Glass Manual Call Point
e2s BExCP3-PT Push Button Tool Reset Call Point
The BExCP3-PT push button manual call points are designed for the harshest of environments and approved for Zone 1, 2, 21 and 22 explosion proof hazardous areas for the control of fire and gas alarm systems. SIL2 compliant to IEC61508 (2010).
The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium with a chromated and powder coat finish. Available with and without monitoring resistors all versions are certified to IECEx and ATEX standards with additional PESO, INMETRO and Ex EAC approvals. The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The BExCP3-PT is user re-settable via the use of the special key supplied with the unit.
Features:
- Alternative housing colours are available to meet specific requirements.
- DIN rail mounted terminal blocks: 8 × 2.5mm²
- Spring loaded lift flap.
- Metalised Polyester or stainless steel duty label.
- Series and/or End of Line resistors, diodes or Zener diodes.
