Code: BExCBGL2-05 LED & Xenon
Caltech Technologies stock list of e2s BExCBGL2-05 LED & Xenon Dual Beacon. A complete range of Hazardous Area Products is available online & in-store.

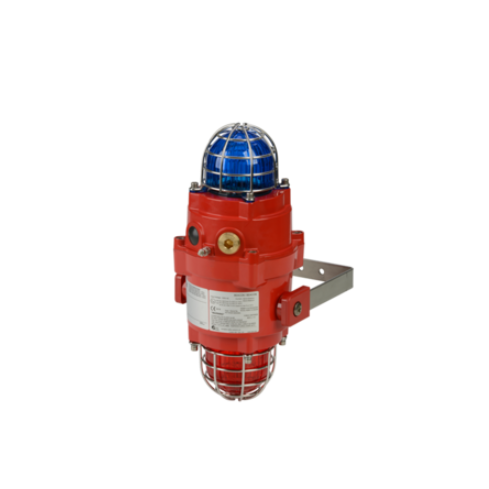

e2s BExCBGL2-05 LED & Xenon Dual Beacon
e2S EExd Explosion Proof LED Multi-function Beacon | Ex-Visual
e2s BExCBGL2-05 LED & Xenon Dual Beacon
The flameproof BExCBGL2-05 dual LED and Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx and ATEX standards.
The BExCBGL2-05D dual LED & 5 Joule Xenon beacons robust construction enables installation in the harshest of environments. The beacons may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67. Features:
- Marine grade, corrosion proof, LM6 aluminium enclosure
- Automatic synchronisation on multi-beacon system.
- Glass lens & Stainless Steel guard
- Very large termination area.
- Dual M20 cable entries – adaptors available.
- Stopping plug included.
- Ratchet adjustable stainless steel ‘U’ bracket.
- Reverse polarity diode fitted.
- IP66/67 ingress protection.
- 120+160 candela effective light intensity.
- UV stable PC, field replaceable, colour lens filters.
- LED modes:
1.5Hz flash (90 fpm)
2Hz flash (120 fpm)
Double strike flash
Triple strike flash
High Power Steady
Low Power Steady
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
