Code: D2xL1F
Caltech Technologies stock list of e2s D2xL1F 15W Hazardous Location Speaker. A complete range of Hazardous Area Products is available online & in-store.
e2s D2xL1F 120dB(A) 15W Hazardous Location Speaker
e2S EExd Explosion Proof Sounder | Ex-Audible
e2s D2xL1F 120dB(A) 15W Hazardous Location Speaker

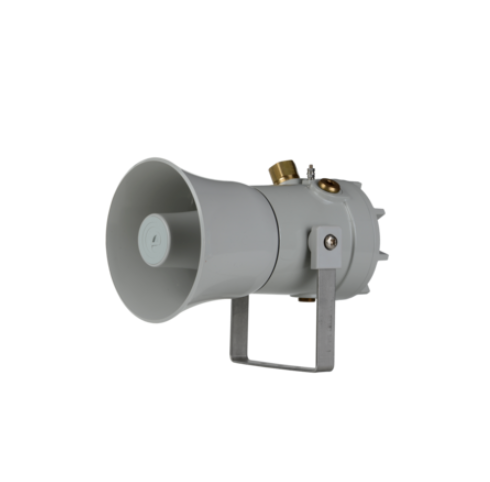

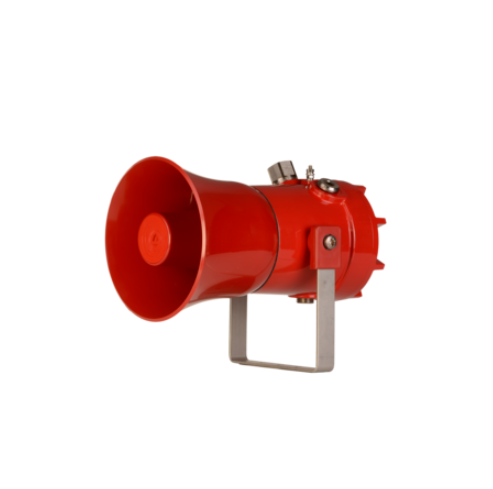

The D2xL1F is a 15W PA loudspeaker with re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures suitability for all Class I/II Div 2 and Zone 2 & 22 hazardous location applications.
The re-entrant flare horn is high impact, fire retardant thermoplastic and is field replaceable – the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries and duplicated terminals.
The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.
The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.
Features:
- Sound output up to 120dB
- Dual 25V/70V or 100V line transformer
- Multiple transformer tappings
- Ratchet adjustable 316 stainless steel bracket
- Triple cable entries
- Robust marine grade aluminium enclosure
- Duplicated cable terminations
- UL 1480A (Ed 1) – Speakers for Commercial and Professional Use
- CSA C22.2 No. 205 (Ed 3) – Signal Equipment
- UL 1480 (Ed 6) – Speakers for Fire Alarm and Signaling Systems,
- CAN/ULC-S541 (Ed 4) – Speakers for Fire Alarm and Signaling Systems
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
e2s D2xL1F 120dB(A) 15W Hazardous Location Speaker
e2S EExd Explosion Proof Sounder | Ex-Audible
e2s D2xL1F 120dB(A) 15W Hazardous Location Speaker
The D2xL1F is a 15W PA loudspeaker with re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures suitability for all Class I/II Div 2 and Zone 2 & 22 hazardous location applications.
The re-entrant flare horn is high impact, fire retardant thermoplastic and is field replaceable – the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries and duplicated terminals.
The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.
The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.
Features:
- Sound output up to 120dB
- Dual 25V/70V or 100V line transformer
- Multiple transformer tappings
- Ratchet adjustable 316 stainless steel bracket
- Triple cable entries
- Robust marine grade aluminium enclosure
- Duplicated cable terminations
- UL 1480A (Ed 1) – Speakers for Commercial and Professional Use
- CSA C22.2 No. 205 (Ed 3) – Signal Equipment
- UL 1480 (Ed 6) – Speakers for Fire Alarm and Signaling Systems,
- CAN/ULC-S541 (Ed 4) – Speakers for Fire Alarm and Signaling Systems
