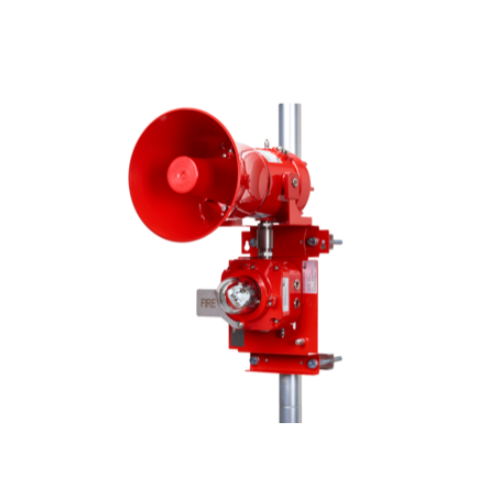

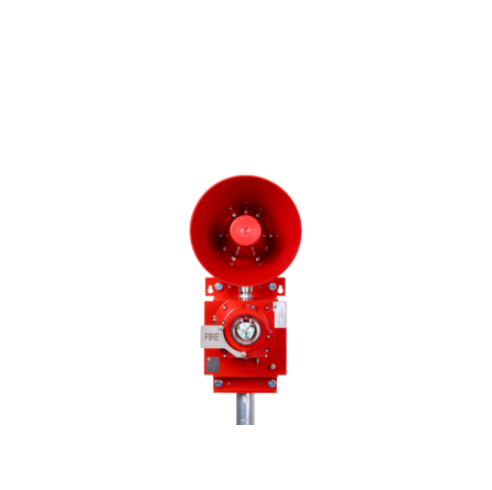

D2xCF Horn/Speaker Strobe

The D2xCF is the optimum solution for public mode fire alarm signalling in hazardous locations. With a choice of either alarm horn or speaker the factory assembled configuration integrates the audible signal with a high output 79.3cd output LED strobe or 70.29cd Xenon.

Robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosures with 316L stainless steel back plate – approved for Class I/II Division 2 and Class I Zone 2/22 applications. The D2xCF combines the industry leading D2xB1LD3 LED or D2xB1XH2 Xenon strobe with a 123dB(A) horn or 15W or 25W speaker. The strobe utilises an array of super high power Cree® LED’s, orientated to optimise visibility. The alarm horn employs class D amplification to provide a high sound output at optimum operating current.

• UL464 and CAN/ULC-S525
• UL1480 and CAN/ULC-S541
• UL1971 & UL1638 and CAN/ULC-S526
• Public & private mode fire use
• Automatic synchronization on multi-horn & strobe systems
• Alarm horn: integrated tone generator with 64 alarm tones
• Speaker: 15W or 25W models with 25/70V transformer
• Marine grade aluminium enclosure
• Ingress protection Type 4/4X/3R/13, IP66
• High impact resistant Borosilicate glass lens
• Supervisory diode – duplicated terminals
• Dual 1/2"NPT entries with haz loc rated stopping plugs
• 316L stainless steel back plate
• Supplied with stainless steel pole mount kit
