e2s D2xC4 Haz Loc LED/Xenon & Horn Alarm Bar
e2S EExd Explosion Proof Alarm Bars | Ex- Alarm Bars
e2s D2xC4 Haz Loc LED/Xenon & Horn Alarm Bar

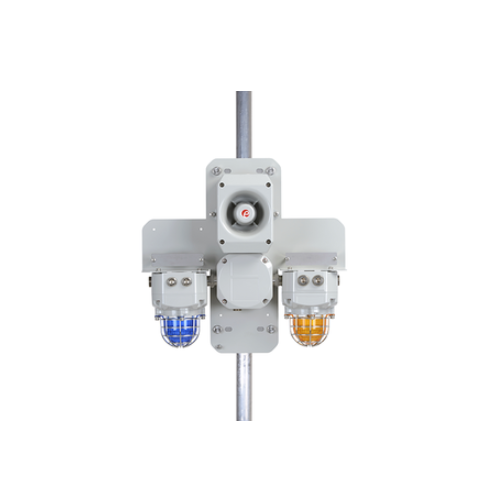

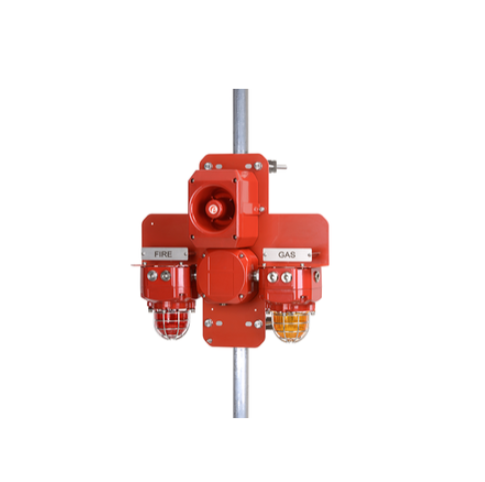

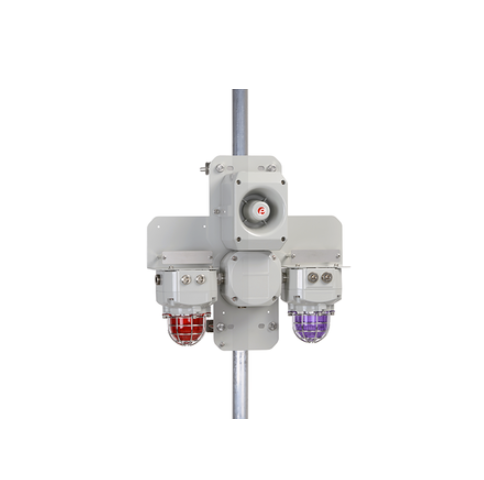

The D2xC4 is an integrated alarm bar assembly comprised of either high output LED or Xenon strobe beacons with a high output alarm horn sounder from the D2x family of globally approved Class I/II Div 2 and Zone 2/22 audible and visual warning signals.
The compact, close coupled D2xC4 alarm bar assembly is ideal for applications where combined audible and visual signals are required to provide multiple warnings. The D2xC4 features a preinstalled cable loom with a large termination area in the integrated junction box. The multi-stage alarm horn sounder can be configured to activate a separate alarm tone with each visual signal.
Features:
- Private mode fire use & General signaling UL464/UL1638
- Globally approved to UL, cUL, IECEx and ATEX
- Available with LED and/or Xenon strobe beacons
- Integrated high output alarm horn sounder up to 116dB(A)
- 4 remotely selectable alarm stages/channels
- Choice of 64 alarm tone frequencies
- Automatic synchronisation on multi-sounder system
- Mounted on a stainless steel back plate
- Factory assembled with integrated cable loom
- Junction box
- Close coupled assembly
- LM6 marine grade aluminium enclosure
- Optional stainless steel duty labels
- Ingress protection Type 4/4X/3R/13, IP66/67
- High impact resistant glass lenses
- Stainless steel lens guards as standard
- Field replaceable lens colour filters
- Dual cable entries
- Supplied with haz loc rated stopping plugs
