Code: D2xC2XH1
Caltech Technologies stock list of D2xC2XH1 Horn & Strobe. A complete range of Hazardous Area Products is available online & in-store.
D2xC2XH1 Horn & Strobe UL464 & UL1971 - Auto Sync
e2S EExd Beacon Sounders | Ex-Sounder Beacon
D2xC2XH1 Horn & Strobe UL464 & UL1971 - Auto Sync

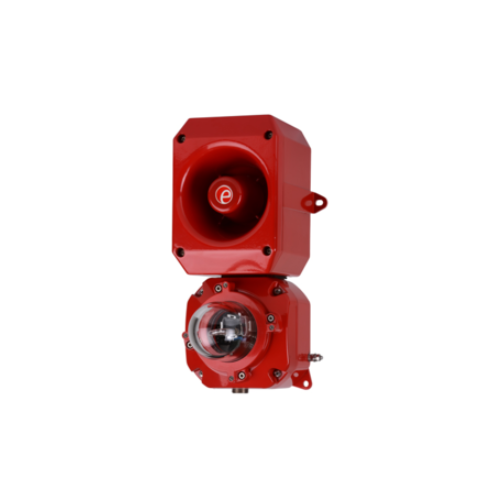

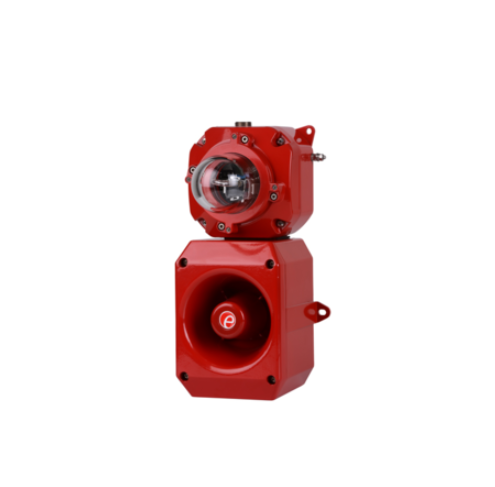

The D2xC2XH1 is a 18.18cd auto-synchronizing alarm horn & Xenon warning light / beacon tested to UL464 & UL1971 suitable for public mode fire alarm, ADA compliant, hearing impaired applications.
Multiple D2xC2XH1 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules in the circuit. The horn & strobe can be powered from the same source, simplifying installation and reducing cabling costs. The unit is UL/cUL & ULC approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 hazardous area applications.
Features:
- Public mode fire use UL464/UL1971 & CAN/ULC-S525/S526
- Auto-synchronized for over 2 hours per UL1971
- 18.18 eff. candela – UL1971 Public mode fire
- 107dB(A) @ 10ft/3m max. sound output – UL464
- 64 alarm tones, 4 remotely selectable alarm stages/channels
- Ultra low combined operating current of 405mA
- In rush limiting circuit – 2.2A for 9ms
- Choice of three UL1971 tested flash rates: 1Hz, 1.3Hz, 1.5Hz
- Marine grade aluminum enclosure
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant Borosilicate glass lens
- Duplicate, pluggable cable terminations
- Supervisory diode
- Dual 1/2"NPT entries
- Supplied with haz loc rated stopping plugs/adaptors
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
