Caltech Technologies stock list of e2s D1xC4 Explosion Proof Alarm Bar. A complete range of Hazardous Area Products is available online & in-store.
e2s D1xC4 Explosion Proof Alarm Bar
e2S EExd Explosion Proof Alarm Bars | Ex- Alarm Bars
e2s D1xC4 Explosion Proof Alarm Bar

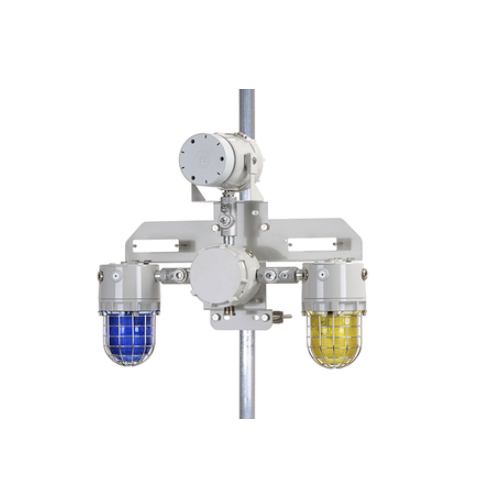

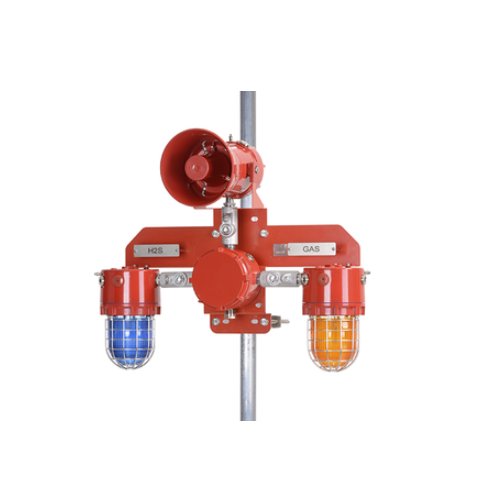

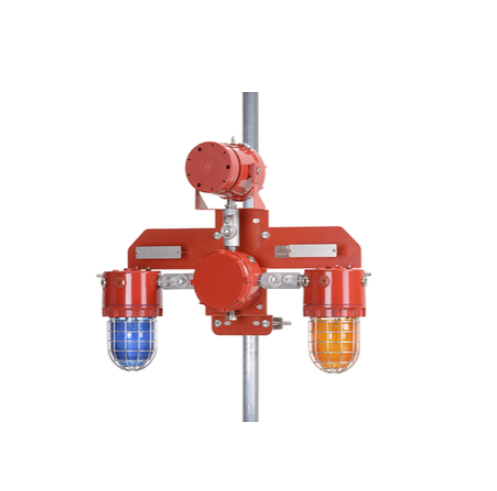

The D1xC4 is an integrated alarm bar assembly comprised of either high output LED or Xenon strobe beacons with a choice of a high output alarm horn sounder from the D1x family of globally approved Class I Div 1 and Zone 1/21 warning signals.
The compact D1xC4 alarm bar assembly is ideal for applications where combined audible and visual signals are required to provide multiple warnings. The D1xC4 features a preinstalled cable loom with a large termination area in the integrated junction box. The multi-stage alarm horn sounder can be configured to activate a separate alarm tone with each visual signal.
Features:
- Private mode fire use & General signaling UL464/UL1638
- Globally approved to UL, cUL, IECEx and ATEX
- Available with LED and/or Xenon strobe beacons
- Integrated high output alarm horn sounder up to 127dB(A)
- 4 remotely selectable alarm stages/channels
- Choice of 64 alarm tone frequencies
- Automatic synchronisation on multi-sounder system
- Mounted on a stainless steel back plate
- Factory assembled with integrated cable loom
- Junction box
- Close coupled assembly
- LM6 marine grade aluminium enclosure
- Optional stainless steel duty labels
- Ingress protection Type 4/4X/3R/13, IP66/67
- High impact resistant glass lenses
- Stainless steel lens guards as standard
- Field replaceable lens colour filters
- Dual cable entries
- Supplied with Ex rated stopping plugs
