Code: D1xC3
Caltech Technologies stock list of e2s D1xC3 Xenon/LED & Horn Alarm Bar. A complete range of Hazardous Area Products is available online & in-store.
e2s D1xC3 Xenon/LED & Horn Alarm Bar
e2S EExd Explosion Proof Alarm Bars | Ex- Alarm Bars
e2s D1xC3 Xenon/LED & Horn Alarm Bar

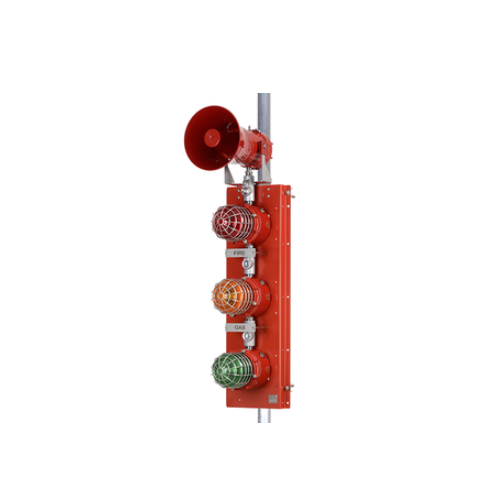

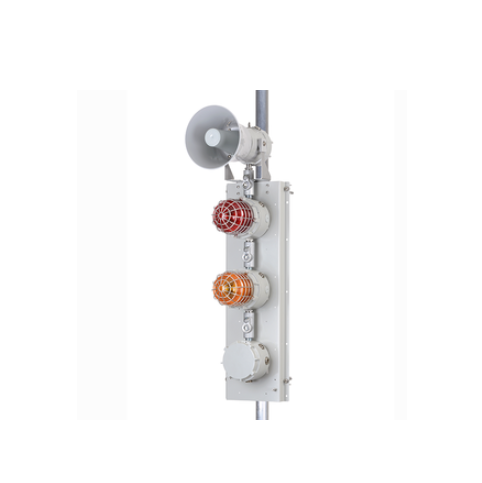

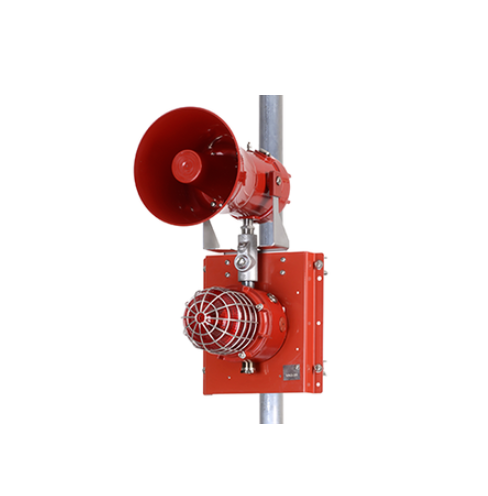

The D1xC3 is an audio-visual explosion proof alarm bar with up to 4 Xenon strobe or LED beacons with a high output alarm horn warning signal. Approved to IECEx, ATEX, UL and cUL for Zone 1, 21 and Class I Zone 1 and 21 plus versions suitable for Class I Division 1. The robust marine grade, corrosion proof aluminium enclosures are rated type 4/4X, IP66/67.
The explosion proof D1xC3 alarm bar is comprised of up to 4 x D1xB2X05 5 Joule, D1xB2X10 10 Joule, D1xB2X15 15 Joule, D1xB2X21 21 Joule Xenon strobes or the D1xB2LD2 multi-function LED beacon with either a D1xS1F, D1xS1R, D1xS2F or D1xS2H alarm horn sounder with sound level outputs of up to 128dB(A). Factory assembled and pre-wired with or without a junction box, the signals are mounted on a 316 (A4) stainless steel plate with pole mount kit included.
Features:
- Globally approved to UL, cUL, IECEx and ATEX
- Factory assembled cable loom – optional junction box
- Robust, corrosion proof marine grade aluminium enclosures
- 316 (A4) stainless steel mounting plate
- 316 (A4) stainless steel beacon guards
- UV stable PC field replaceable lens colour filter
- Ingress protection 4/4X/13/3R, IP66/67
- Automatic synchronisation
- Multiple wiring configurations available
- SIL1/SIl2 (Route 2H) compliant
- Version SIL2 (Route 1H) compliant with diagnostics
- Telephone/Relay initiate version available
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
e2s D1xC3 Xenon/LED & Horn Alarm Bar
e2S EExd Explosion Proof Alarm Bars | Ex- Alarm Bars
e2s D1xC3 Xenon/LED & Horn Alarm Bar
The D1xC3 is an audio-visual explosion proof alarm bar with up to 4 Xenon strobe or LED beacons with a high output alarm horn warning signal. Approved to IECEx, ATEX, UL and cUL for Zone 1, 21 and Class I Zone 1 and 21 plus versions suitable for Class I Division 1. The robust marine grade, corrosion proof aluminium enclosures are rated type 4/4X, IP66/67.
The explosion proof D1xC3 alarm bar is comprised of up to 4 x D1xB2X05 5 Joule, D1xB2X10 10 Joule, D1xB2X15 15 Joule, D1xB2X21 21 Joule Xenon strobes or the D1xB2LD2 multi-function LED beacon with either a D1xS1F, D1xS1R, D1xS2F or D1xS2H alarm horn sounder with sound level outputs of up to 128dB(A). Factory assembled and pre-wired with or without a junction box, the signals are mounted on a 316 (A4) stainless steel plate with pole mount kit included.
Features:
- Globally approved to UL, cUL, IECEx and ATEX
- Factory assembled cable loom – optional junction box
- Robust, corrosion proof marine grade aluminium enclosures
- 316 (A4) stainless steel mounting plate
- 316 (A4) stainless steel beacon guards
- UV stable PC field replaceable lens colour filter
- Ingress protection 4/4X/13/3R, IP66/67
- Automatic synchronisation
- Multiple wiring configurations available
- SIL1/SIl2 (Route 2H) compliant
- Version SIL2 (Route 1H) compliant with diagnostics
- Telephone/Relay initiate version available
