Code: D1xC1X05F
Caltech Technologies stockist of D1xC1X05F Beacon Sounders. A complete range of Hazardous Area Products is available online & in-store.

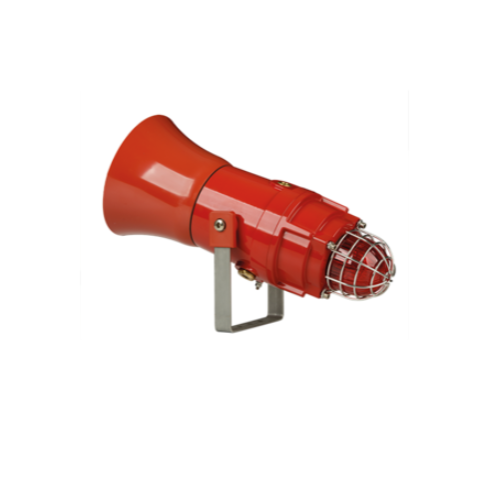

e2s D1xC1X05F 115dB(A) Alarm Horn & 5J Strobe
e2S EExd Beacon Sounders | Ex-Sounder Beacon
e2s D1xC1X05F 115dB(A) Alarm Horn & 5J Strobe
The D1xC1X05F is a globally certified alarm horn sounder featuring a re-entrant flare horn and combined with a 5 Joule Xenon strobe beacon. Robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure approved for Class I & II Div 1, Zone 1 & 20, IECEx and ATEX Zone 1, 2, 21 & 22 explosion proof signalling applications.
Featuring 64 alarm tone sounds, each of the available 4 stage/channels can be remotely triggered. Class D amplification provides a high sound output at optimum operating current. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc Class I version is approved for public (alarm horn) and private mode fire alarm use. SIL1 & SIL2 compliant to IEC61508 (2010) as standard.
Alarm Horn Sounder:
Maximum
output: 115dB(A) @ 1 metre [106dB(A) @ 10ft/3m]
Class II version: 98dB(A) @ 1 metre [88dB(A) @ 10ft/3m]
Nominal output:110dB(A) @ 1m +/- 3dB – Tone 4 [101dB(A) @ 10ft/3m]
Class II version: 94dB(A) @ 1 metre [84dB(A) @ 10ft/3m]
No. of tones: 64 (UKOOA / PFEER compliant)
No. of stages: 4
Volume control: Full range
Effective range: 125m/410ft @ 1KHz
Voltages DC: 24Vdc (20-28Vdc)
Voltages AC: 110-120Vac, 220-240Vac
Stage switching: DC units: negative or positive
AC units: common supply line
Beacon:
Class II version: 98dB(A) @ 1 metre [88dB(A) @ 10ft/3m]
Nominal output:110dB(A) @ 1m +/- 3dB – Tone 4 [101dB(A) @ 10ft/3m]
Class II version: 94dB(A) @ 1 metre [84dB(A) @ 10ft/3m]
No. of tones: 64 (UKOOA / PFEER compliant)
No. of stages: 4
Volume control: Full range
Effective range: 125m/410ft @ 1KHz
Voltages DC: 24Vdc (20-28Vdc)
Voltages AC: 110-120Vac, 220-240Vac
Stage switching: DC units: negative or positive
AC units: common supply line
Beacon:
Energy: 5 Joules (5Ws)
Flash rate: Option 1: 1Hz (60 fpm)
Option 2: 1.5Hz (90 fpm)
Option 3: Double Strike
Peak Candela: 46,976 cd* – measured ref. to I.E.S.
Eff. Intensity: 143 cd* – measured ref. to I.E.S.
Peak Candela: 500,000 cd – calculated from energy (J)
Eff. Intensity: 250 cd – calculated from energy (J)
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Tube life: Emissions reduced to 70% > 5 million flashes
Flash rate: Option 1: 1Hz (60 fpm)
Option 2: 1.5Hz (90 fpm)
Option 3: Double Strike
Peak Candela: 46,976 cd* – measured ref. to I.E.S.
Eff. Intensity: 143 cd* – measured ref. to I.E.S.
Peak Candela: 500,000 cd – calculated from energy (J)
Eff. Intensity: 250 cd – calculated from energy (J)
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Tube life: Emissions reduced to 70% > 5 million flashes
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
