Code: D1xC1F
Caltech Technologies stock list of D1xC1F Beacon Sounders. A complete range of Hazardous Area Products is available online & in-store.
e2S BExCS110-05 Explosion Proof Alarm & Strobe
e2S EExd Beacon Sounders | Ex-Sounder Beacon
e2S BExCS110-05 Explosion Proof Alarm & Strobe

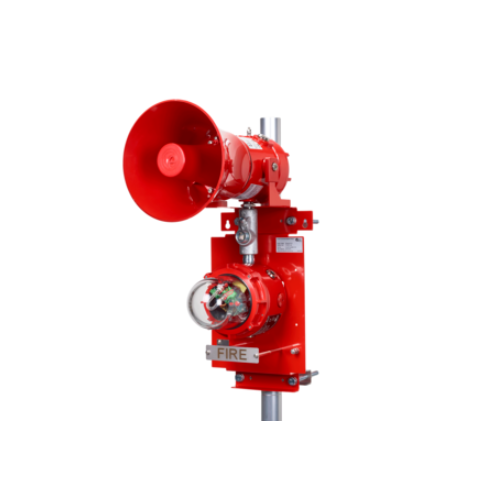

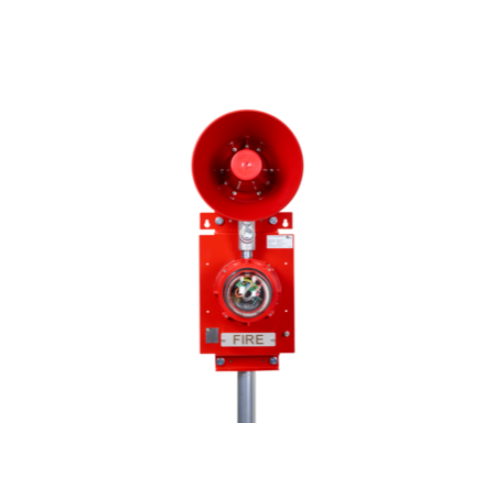

The D1xCF is a unique solution for combined audible and visual public notification in explosion proof environments. With a choice of either alarm horn or speaker the D1xCF features a factory assembled configuration integrating the audible signal with a high output Xenon strobe with 86cd or 190cd options.
Robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosures with 316L stainless steel back plate – approved for Class I Division 1 and Class I Zone 1 applications. Horn options offer 115dB(A) or 123dB(A) sound level outputs employing class D amplification to provide a high sound output at optimum operating current. Multiple horn & strobe D1xCF units will auto-synchronize when powered from the same source, removing the need for sync modules.
Features:
- UL464 and CAN/ULC-S525
- UL1480 and CAN/ULC-S541
- UL1971 & UL1638 and CAN/ULC-S526
- Public & private mode fire use
- Choice of three flash rates: 1Hz, 1.3Hz & 1.5Hz
- Automatic synchronization on multi-horn & strobe systems
- Alarm horn: integrated tone generator with 64 alarm tones
- Speaker: 15W or 25W models with 25/70V transformer
- Marine grade aluminium enclosure
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant Borosilicate glass lens
- Supervisory diode – duplicated terminals
- Dual 1/2"NPT entries with haz loc rated stopping plugs
- 316L stainless steel back plate
- Supplied with stainless steel pole mount kit
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
