e2s BExCS110-05 Omni-directional Horn & Strobe

Categories

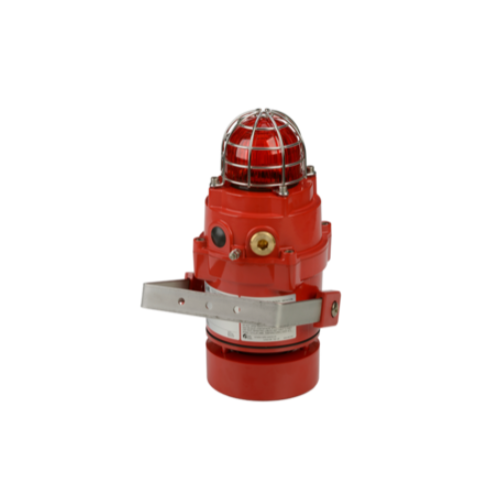

BEXCS11005DPFAC230AB1A1R/A
BEXCS11005DPFAC230AB1A1R/A
Code: e2s BExCS110-05 Omni-directional Horn & Strobe

Caltech Technologies stockist of BEXCS11005DPFAC230AB1A1R/B, Beacon Sounders. A complete range of Hazardous Area Products is available online & in-store.






Product Description

e2s BExCS110-05 Omni-directional Horn & Strobe

e2S EExd Beacon Sounders | Ex-Sounder Beacon



e2s BExCS110-05 Omni-directional Horn & Strobe

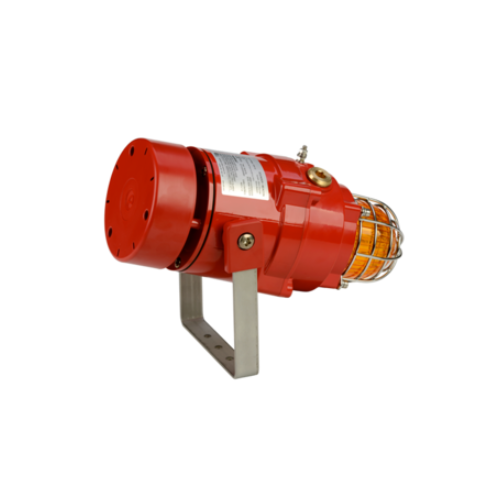

Flameproof BExCS110-05-R omni-directional combination alarm horn sounder and Xenon strobe beacon for Zone 1, 2, 21 & 22. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.

The radial horn on the compact BExCS110-05-R distributes the audible warning signal omni-directionally allowing the visual signal to be orientated optimally. The alarm horn & Xenon beacon may be connected from a single power supply for simultaneous operation or from separate supplies for independent operation. The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have dual cable entries, large termination areas, containing in & out terminals, and an ingress protection of IP66/67.

Alarm Horn Sounder:
  • Maximum output: 115dB(A) @ 1 metre [106dB(A) @ 10ft/3m]
  • Nominal output: 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m]
  • No. of tones: 32 (UKOOA / PFEER compliant)
  • No. of stages: 3
  • Volume control: Max. 110dB(A) Min. 72dB(A) – Tone 2
  • Effective range: 100m/328ft @ 1KHz
  • Voltages DC: 12vdc; 24vdc; 48vdc
  • Voltages AC: 115vac; 230vac
  • Stage switching: Negative or positive
Beacon:
  • Energy: 5 Joules (5Ws)
  • Flash rate: 1Hz (60 fpm)
  • Peak Candela: 500,000 cd – calculated from energy (J)
  • Eff. Intensity: 250 cd – calculated from energy (J)
  • Peak Candela: 39,463 cd* – measured ref. to I.E.S.
  • Eff. Intensity: 120 cd* – measured ref. to I.E.S.
  • Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
  • Tube life: Emissions reduced to 70% after 5 million flashes

For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
