Code: BEXCS11005DPFAC230AB1A1R/A
Caltech Technologies stockist of BEXCS11005DPFAC230AB1A1R/A, Beacon Sounders. A complete range of Hazardous Area Products is available online & in-store.

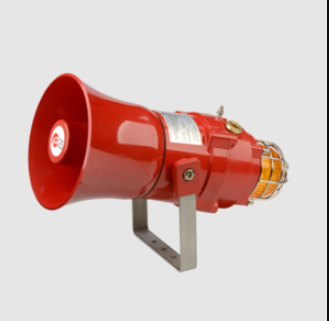

e2S BExCS110-05 Explosion Proof Alarm & Strobe
e2S EExd Beacon Sounders | Ex-Sounder Beacon
BExCS110-05 Explosion Proof Alarm & Strobe
The flameproof BExCS110-05 combination alarm horn sounders and Xenon strobe beacons are suitable for Zone 1, 2, 21 & 22. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
EExd 230V ac sounder with flashing red beaconAlarm Horn Sounder:
- Maximum output: 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
- Nominal output: 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m]
- No. of tones: 32 (UKOOA / PFEER compliant)
- No. of stages: 3
- Volume control: Max. 110dB(A); Min. 72dB(A) – Tone 2
- Effective range: 100m/328ft @ 1KHz
- Voltages DC: 12vdc; 24vdc; 48vdc
- Voltages AC: 115vac; 230vac
- Stage switching: Negative or positive
- Energy: 5 Joules (5Ws)
- Flash rate: 1Hz (60 fpm)
- Peak Candela: 500,000 cd – calculated from energy (J)
- Eff. Intensity: 250 cd – calculated from energy (J)
- Peak Candela: 39,463 cd* – measured ref. to I.E.S.
- Eff. Intensity: 120 cd* – measured ref. to I.E.S.
- Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
- Tube life: Emissions are reduced to 70% after 5 million flashes
For additional information & options please do not hesitate to reach out and request a quote below, or by reaching out to sales@caltech.ie.
e2S BExCS110-05 Explosion Proof Alarm & Strobe
e2S EExd Beacon Sounders | Ex-Sounder Beacon
BExCS110-05 Explosion Proof Alarm & Strobe
The flameproof BExCS110-05 combination alarm horn sounders and Xenon strobe beacons are suitable for Zone 1, 2, 21 & 22. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
EExd 230V ac sounder with flashing red beaconAlarm Horn Sounder:
- Maximum output: 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
- Nominal output: 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m]
- No. of tones: 32 (UKOOA / PFEER compliant)
- No. of stages: 3
- Volume control: Max. 110dB(A); Min. 72dB(A) – Tone 2
- Effective range: 100m/328ft @ 1KHz
- Voltages DC: 12vdc; 24vdc; 48vdc
- Voltages AC: 115vac; 230vac
- Stage switching: Negative or positive
- Energy: 5 Joules (5Ws)
- Flash rate: 1Hz (60 fpm)
- Peak Candela: 500,000 cd – calculated from energy (J)
- Eff. Intensity: 250 cd – calculated from energy (J)
- Peak Candela: 39,463 cd* – measured ref. to I.E.S.
- Eff. Intensity: 120 cd* – measured ref. to I.E.S.
- Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
- Tube life: Emissions are reduced to 70% after 5 million flashes
